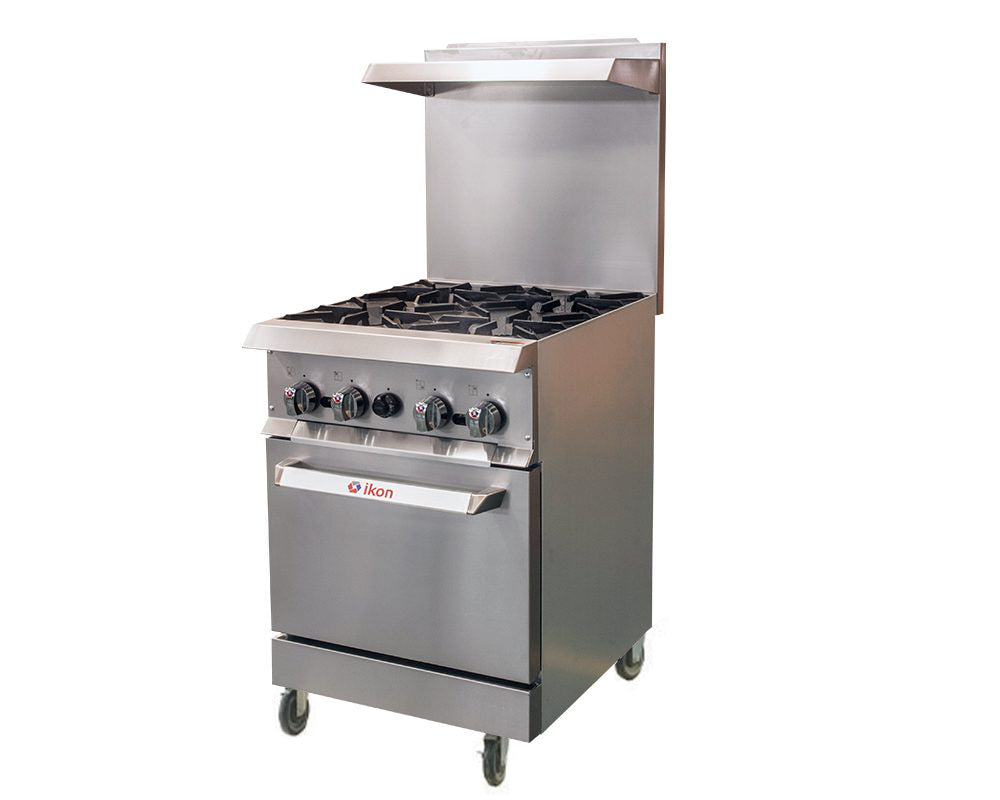

IKON IR-4-24CO 24" 4-Burner Gas Range with Convection Oven – 153,000 BTU

The IKON IR-4-24CO 24" 4-Burner Gas Range with Convection Oven is a high-performance, space-saving solution for commercial kitchens. Ideal for restaurants, cafes, catering operations, and food trucks, this range combines four 30,000 BTU burners with a powerful 33,000 BTU convection oven to deliver even, consistent results across all your cooking applications.

Crafted with a rugged stainless steel exterior and a porcelain-coated oven interior, this unit is as durable as it is easy to clean. The convection oven circulates hot air to reduce cook times and enhance uniformity—perfect for baking, roasting, and finishing dishes with precision. The manual thermostat provides easy control of oven temperatures ranging from 200°F to 500°F.

Whether you're sautéing, boiling, baking, or roasting, the IR-4-24CO is a reliable culinary workhorse built to meet the demands of busy commercial kitchens.

Key Features

  • Four (4) 30,000 BTU open burners for high-output cooking
  • Powerful 33,000 BTU convection oven for faster, even baking
  • Manual oven thermostat with a temperature range of 200°F to 500°F
  • Porcelain-coated oven interior for easy cleaning and durability
  • Stainless steel front, riser, and lift-off shelf for professional aesthetics
  • Heavy-duty cast iron grates (12" x 12") for stable pan support
  • Compact 24" width – perfect for space-conscious operations
  • Pull-out crumb tray for quick cleanup
  • Shipped for Natural Gas with included LP conversion kit
  • NEMA 5-15P 120V cord and plug included (North America)
  • Optional casters available for mobility
  • CSA certified and NSF listed for commercial use
  • Designed exclusively for commercial installation

Product Specifications

Specification Details
Model IKON IR-4-24CO
Total BTU 153,000 BTU (4 burners + 1 convection oven)
Burners Four (4) 30,000 BTU open burners
Oven Type 33,000 BTU convection oven
Oven Temp Range 200°F to 500°F
Oven Interior Dimensions 20" W x 22.5" D x 13.75" H
Oven Interior Porcelain-coated sides, guides & bottom
Grates 12" x 12" heavy-duty cast iron
Controls Manual thermostatic controls
Ignition Standing pilot ignition per burner
Exterior Finish Stainless steel front, riser, and lift-off shelf
Gas Type Ships as NG; LP conversion kit included
Gas Connection ¾” NPT rear gas inlet
Electric Requirements NEMA 5-15P 120V plug (220V option available)
Casters Optional
Certifications CSA Design Certified, NSF Listed
Installation Commercial use only
Clearance Requirements 6" side & rear (if adjacent to combustible materials)

Ideal For:

  • Compact restaurant and food truck kitchens
  • Cafés and bistros
  • Caterers and commissary kitchens
  • Institutions and multi-use prep environments

Downloads

IKON

Ikon IR-4-24CO Gas range - 4 burners with convection oven

SKU IR-4-24CO
$4,910.00
$2,516.38
$4,910.00
$2,516.38

Authorized Online Dealer
Free Shipping + No Sales Tax (exclusions may apply)
We Beat The Lowest Price
Total estimated delivery: 4-13 Days
Manufacturer Warranty Included
Questions? Call Our Experts: +1 800 960 2171
