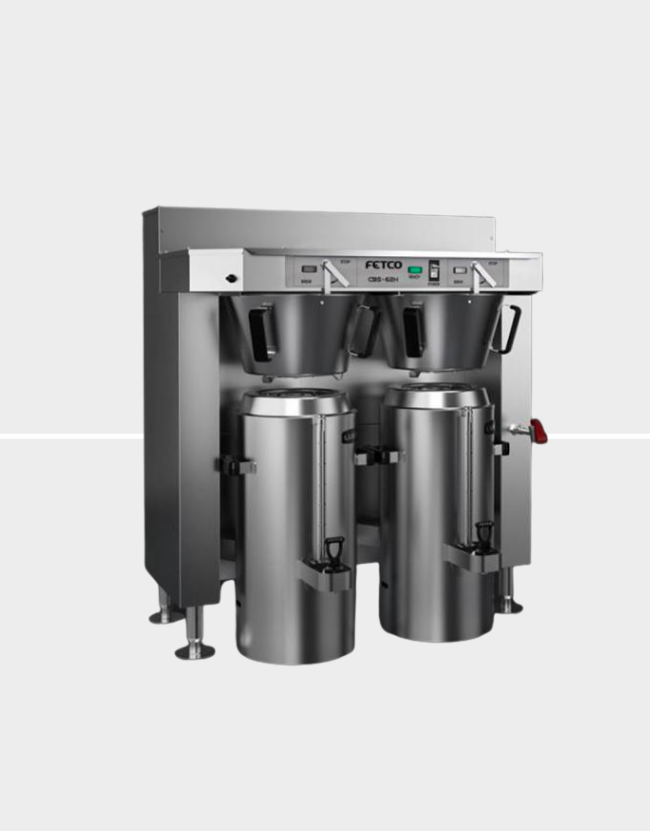

FETCO IP44 CBS-62H-30 Maritime Coffee Brewer – 6 Gal, 3-Phase
Brew Excellence on Board – Built for Harsh Maritime Environments
The FETCO IP44 CBS-62H-30 Maritime Coffee Brewer is the ultimate high-volume brewing solution for cruise ships, ferries, and outdoor beverage service operations. Designed with IP44 ingress protection, this rugged twin 3.0-gallon brewer withstands the demanding conditions of marine environments while delivering consistent, barista-quality results.
Equipped with advanced features including spray-over technology for precise water contact time, a patented gravity-fed tube to reduce lime scale, and a brew basket lock with integrated start switch, the CBS-62H-30 ensures safe, consistent, and flavorful brewing every time.
Whether you're fueling a fleet or serving premium coffee outdoors, this FETCO brewer is engineered for performance, safety, and long-term reliability.
Key Features:
- Marine-Rated IP44 Construction – Built to perform in protected outdoor and marine environments
- Twin 3.0-Gallon Brewing Tanks – Ideal for high-volume operations
- Spray-Over Technology – Enhanced extraction with adjustable water contact time
- Brew Basket Lock Safety – Prevents accidental brewing without basket in place
- Half-Batch Function – Brew smaller quantities with full flavor control
- Patented Gravity-Fed Tube System – Minimizes lime build-up
- Stainless Steel Construction (304 Grade) – Corrosion-resistant and easy to clean
- Terminal Block Electrical Connection – Compatible with multiple three-phase voltages
- TPD30 Dispenser Compatible
What’s Included:
- FETCO IP44 CBS-62H-30 Twin 3.0 Gallon Coffee Brewer
- Integrated Brew Basket Locks
- Maritime Package Hardware
- Step-down Transformer
- Operation & Installation Manual
Product Specifications:
| Category | Details |
|---|---|
| Model | CBS-62H-30 (Maritime IP44 Rated) |
| Tank Capacity | 6 Gallons / 22.8 Liters |
| Construction | 304 Stainless Steel |
| Height | 40.6 in / 103.2 cm |
| Width | 35.5 in / 90.2 cm |
| Depth | 22.375 in / 56.8 cm |
| Empty Weight | 197 lbs / 89.4 kg |
| Shipping Dimensions | 43″ x 37″ x 24″ (109.2 x 94 x 61 cm) |
| Shipping Weight | 199 lbs / 90.3 kg |
| Electrical Connection | Terminal Block |
| Voltage Options | 220–240V / 380–400V / 440–480V (3-Phase) |
| Max Amp Draw | 13.6–29.2 Amps (Depending on config) |
| KW Output | 7.8 – 24.1 kW (Multiple options) |
| Cup Output | 8 oz – 864/hr, 12 oz – 576/hr |
| 16 oz – 432/hr, 20 oz – 346/hr | |
| Water Inlet Size | 3/8" Male Flare Fitting |
| Min. Flow Rate | 2.0 GPM [7.6 LPM] |
| Water Pressure | 20–75 psig [138–517 kPa] |
Electrical Configuration – FETCO Maritime Coffee
FETCO IP44-62H-30
| Configuration Code | Heater Configuration | Voltage (V) | Phase | Wires | KW | Electrical Connection | Max Amp Draw (A) | Brew Rate (Gal/L per Hour) |
|---|---|---|---|---|---|---|---|---|
| C62206MIP | 3 × 3.0 kW | 220–240 | 3 | 3 + G | 7.8–9.1 | Terminal Block | 20.5–22.4 | 9.0–12.0 gal (34.1–45.4 L) |
| C62196MIP | 3 × 4.0 kW | 440–480 | 3 | 3 + G | 10.3–12.1 | Terminal Block | 13.6–14.8 | 13.5–15.0 gal (51.1–56.8 L) |
| C62216MIP | 3 × 4.0 kW | 380–400 | 3 | 3 + G | 7.7–8.5 | Terminal Block | 11.7–12.3 | 22.5–24.0 gal (85.2–90.8 L) |
| C62186MIP | 6 × 4.0 kW | 440–480 | 3 | 3 + G | 20.1–24.1 | Terminal Block | 26.8–29.2 | 25.5–27.0 gal (96.5–102.2 L) |
Notes:
- All models use Terminal Block connections for secure installation.
- Phase and voltage configurations accommodate diverse electrical systems across vessels.
- KW range reflects different heater load requirements per configuration.
- Brewing output varies based on voltage, water pressure, and temperature rise.
About – FETCO
FETCO is committed to brewing innovation. For over 30 years, the brand has been a leading manufacturer of premium coffee and tea brewing equipment, hot water dispensers, and grinders—trusted by foodservice professionals worldwide.
Founded in 1987 by Zbigniew Lassota and Christopher Nowak, FETCO was established to meet the industry’s demand for high-quality, dependable brewing solutions. All products are manufactured at the company’s headquarters in Lake Zurich, Illinois, continuing a legacy of engineering excellence.
What sets FETCO apart is a strong focus on innovation and customer experience. Each product is thoughtfully designed with performance, reliability, and specific business needs in mind. From independent cafés to global chains, FETCO equipment supports coffee and tea professionals in delivering exceptional service and consistency.
Driven by progress and powered by trust, FETCO remains a dedicated partner in every brewing journey.
