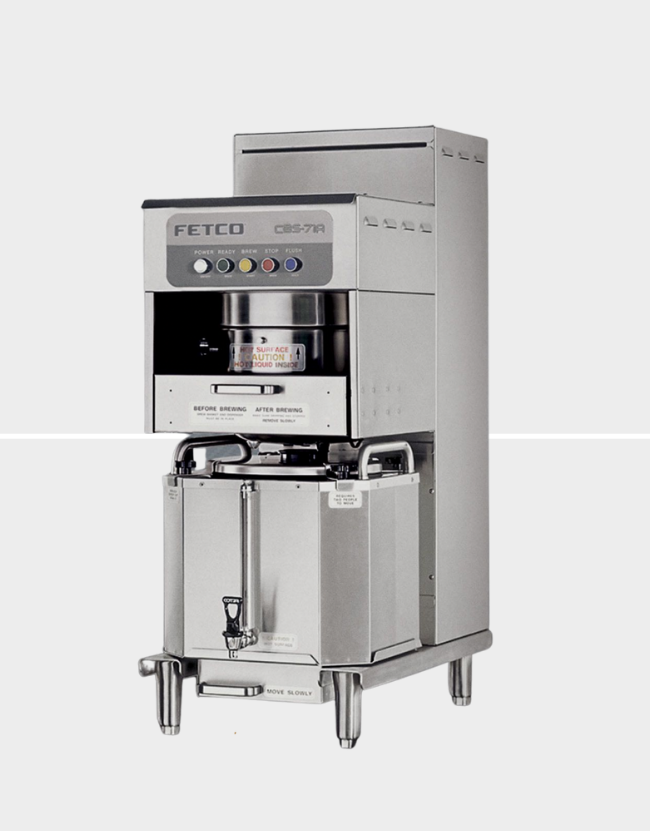

FETCO CBS-71A High Volume Coffee Brewer – 6 Gallon Capacity (Countertop)
Brew Big. Serve Fast. Repeat.
Maximize your coffee service with the FETCO CBS-71A High Volume Coffee Brewer — the ultimate solution for large-scale brewing in hotels, stadiums, convention centers, and catering operations. Engineered for consistency, reliability, and pure performance, this industrial-grade brewer delivers up to 6 gallons of premium coffee at a time — and up to 480 cups per hour!
Designed to brew directly into FETCO’s high-capacity LBD Series thermal dispensers (sold separately), the CBS-71A streamlines your operation by allowing hot coffee to be transported and served anywhere your guests are.
The CBS-71A doesn’t just brew — it thinks. Once you program your ideal recipe, it delivers repeatable results every time. Precision controls allow you to adjust contact time and bypass percentage, while an oversized spray pan ensures even saturation of grounds. Its enclosed brew compartments also contain steam, reducing the need for external ventilation.
Built for high output, optimized for efficiency — the CBS-71A is the professional’s choice for high-volume brewing.
Key Features:
- Brews up to 6 gallons at a time — perfect for hotels, stadiums & banquets
- Output of up to 480 cups (8 oz) per hour
- Programmable controls for water contact time and bypass percentage
- Consistent, repeatable brewing results every cycle
- Enclosed steam-control system eliminates external venting
- Brews directly into LBD Series thermal dispensers (sold separately)
- Terminal block electrical connection with multi-voltage options
- Made in the USA – engineered and manufactured in Illinois
What’s Included:
- FETCO CBS-71A High Volume Coffee Brewer
- User Manual
- Programmable Brew Control Panel
- Stainless Steel Spray Pan
- Installation Hardware Kit
Note: Dispensers and thermal containers are sold separately.
Product Specifications:
| Category | Specification |
|---|---|
| Brew Capacity | 6 Gallons / 22.8 Liters |
| Cups per Hour (8 oz) | 480 |
| Cups per Hour (12 oz) | 320 |
| Cups per Hour (16 oz) | 240 |
| Cups per Hour (20 oz) | 192 |
| Height | 46.5 in (118.1 cm) |
| Width | 18 in (45.7 cm) |
| Depth | 37 in (94 cm) |
| Empty Weight | 239 lbs (108.4 kg) |
| Filled Weight | 390 lbs (177.0 kg) |
| Shipping Weight | 313 lbs (142.0 kg) |
| Shipping Dimensions | 55″ x 48″ x 42″ (139.7 x 121.9 x 106.7 cm) |
| Tank Capacity | 6 Gallons |
| Water Inlet | 3/8" Male Flare Fitting |
| Minimum Flow Rate | 2 GPM |
| Water Pressure Requirement | 20–75 psig (138–517 kPa) |
| Electrical Connection | Terminal Block |
| Voltage Options | 120/208–240V or 440–480V |
| Phase | 3-Phase |
| Max Amp Draw | 31.9–72.9 Amps (varies by config) |
| Heater Configuration | 3x 5.0 kW or 3x 10.0 kW (varies by model) |
| Gallons per Hour | Up to 36 gallons (136.3 liters) |
Available Electrical Configurations
| Config Code | Voltage | Phase | KW | Max Amps | Brew Output (GPH) |
|---|---|---|---|---|---|
| C71017 | 120/208-240V | 3 | 3 x 5.0 kW | 31.9–36.8 | 18.0–24.0 GPH |
| C71027 | 120/208-240V | 3 | 3 x 10.0 kW | 63.2–72.9 | 36.0 GPH |
| C71037 | 440–480V | 3 | 3 x 10.0 kW | 30.1–36.1 | 36.0 GPH |
Note: For international voltages, please refer to the full spec sheet.
About – FETCO
FETCO is committed to brewing innovation. For over 30 years, the brand has been a leading manufacturer of premium coffee and tea brewing equipment, hot water dispensers, and grinders—trusted by foodservice professionals worldwide.
Founded in 1987 by Zbigniew Lassota and Christopher Nowak, FETCO was established to meet the industry’s demand for high-quality, dependable brewing solutions. All products are manufactured at the company’s headquarters in Lake Zurich, Illinois, continuing a legacy of engineering excellence.
What sets FETCO apart is a strong focus on innovation and customer experience. Each product is thoughtfully designed with performance, reliability, and specific business needs in mind. From independent cafés to global chains, FETCO equipment supports coffee and tea professionals in delivering exceptional service and consistency.
Driven by progress and powered by trust, FETCO remains a dedicated partner in every brewing journey.
