Ditting 1403 Industrial Grinder – High-Performance Grinding for Roasteries & Coffee Labs
Ditting 1403 Industrial Grinder – High-Performance Grinding for Roasteries & Coffee Labs
Couldn't load pickup availability

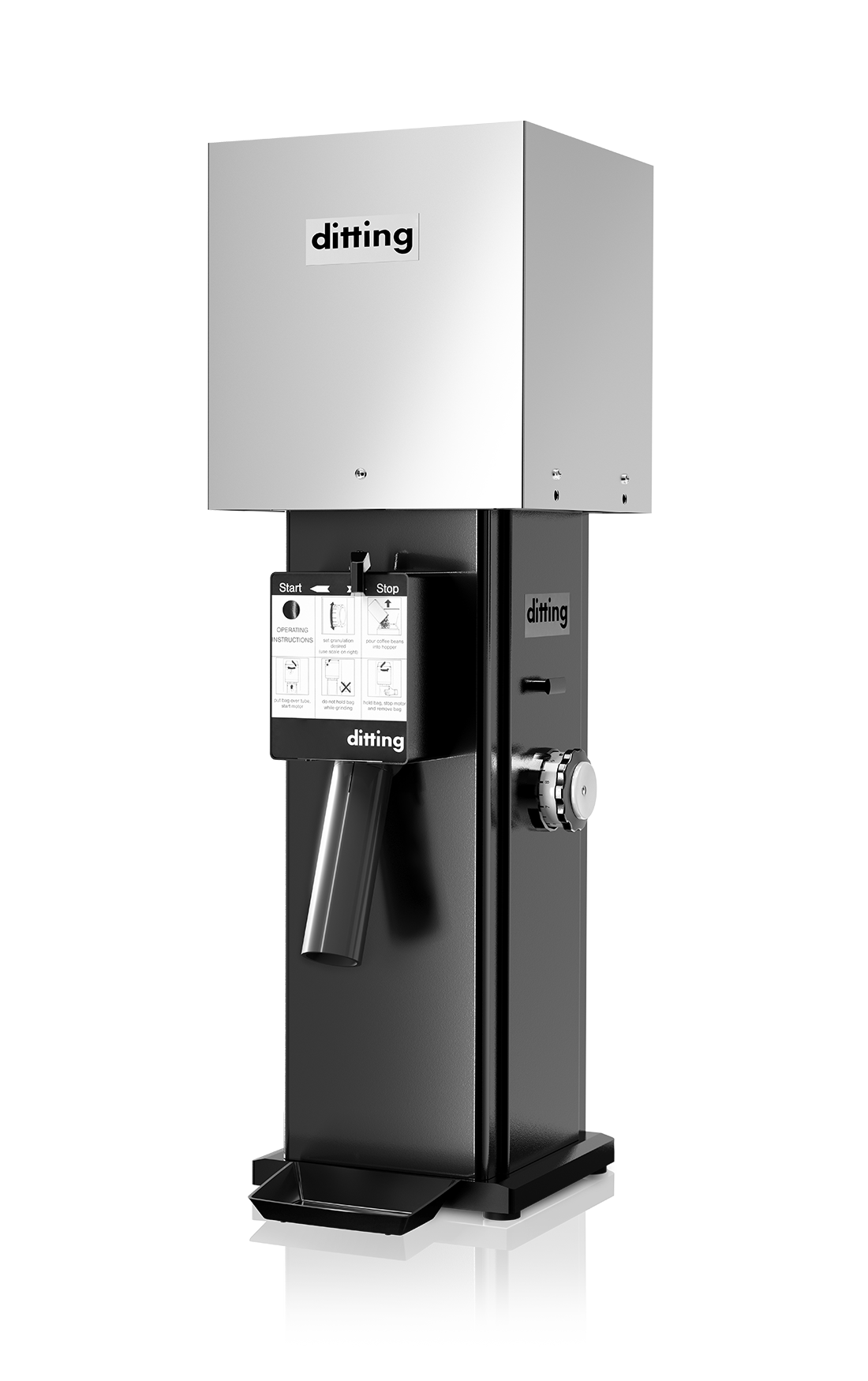

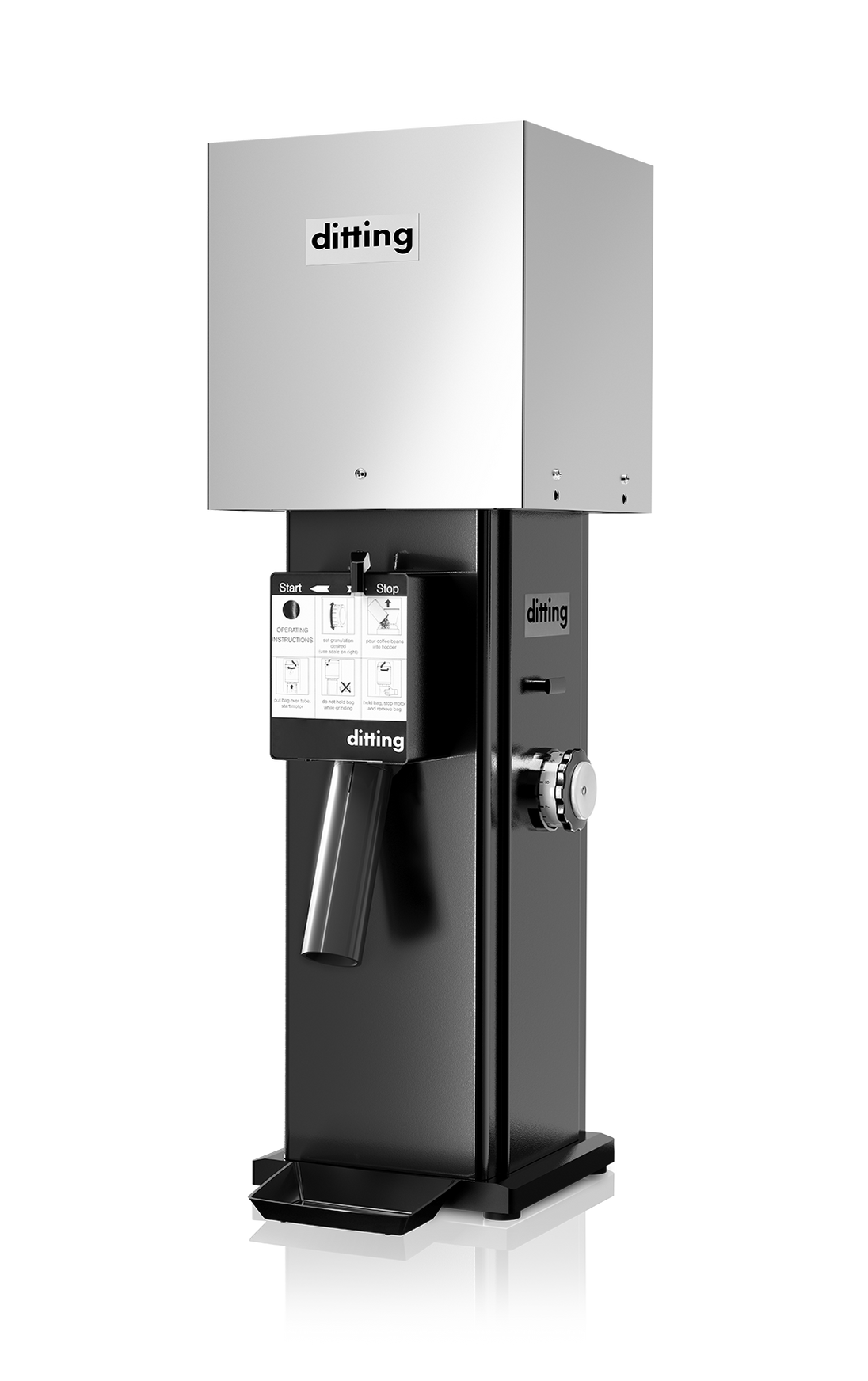

The Ditting 1403 Industrial Grinder is the ultimate solution for small to medium-size roasteries that require precision, speed, and consistency. Engineered with specially developed motors and premium burrs, this grinder ensures uniform and gentle grinding while preserving the coffee’s unique aroma. With its high grinding capacity, robust construction, and easy maintenance, the 1403 is the go-to choice for professional coffee grinding.
Key Features
- Powerful Three-Phase Motor: Specially designed for high-speed grinding at all grind adjustment steps.
- 140 mm Special Steel Burrs: Precision-engineered for consistent grinding and extended burr life (10-15 tons).
- Stepless Grind Adjustment: Allows for precise control over grind size, from coarse to Turkish fine cut.
- Uniform & Cool Grinding: Built-in fan and sharpened burrs preserve the coffee’s aroma and prevent overheating.
- High Grinding Capacity: Processes up to 36 grams per second for efficient large-scale grinding.
- Industrial Hopper: Large 10 kg bean hopper for uninterrupted grinding sessions.
- Hopper Slider & Removable Spout Extension: Provides convenience for filling and dispensing ground coffee.
- Easy Maintenance & Cleaning: Designed for simple and efficient servicing.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage // Frequencies // Phases | 380-415 V // 50/60 Hz // 3~ 200-240 V // 50/60 Hz // 3~ |
| Revolutions Per Minute | 1400 rpm (50 Hz) |
| Burr Diameter | 140 mm |
| Burr Material | Special Steel |
| Burr Grind Life (Median Setting) | 10-15 tons |
| Average Grinding Capacity* | 36 g/s |
| Bean Hopper Capacity | Approx. 10 kg |
| Nominal Power | 1700-2000 W |
| Dimensions (W x H x D) | 260 x 640 x 340 mm |
| Dimensions of Packing (W x H x D) | 330 x 730 x 400 mm |
| Net Weight | 38 kg |
| Shipping Weight | 45 kg |
| Standard Color | Jet Black |
Available Versions
- KFA: Automatic bag clamp
- KF: Manual bag clamp
Optional Accessories
- 140 mm special steel burrs for Turkish fine cut
- 140 mm special steel burrs for increased grind speed and coarser grinding
- Extra-wide range of grind size adjustment
- Ground coffee cup
- Customized RAL-color (available upon request)
*Grinding speed depends on the grinding goods and the chosen degree of fineness. All measured values are under laboratory conditions. Other electric specifications are available upon request. Subject to change without prior notice.
Upgrade your coffee production with the Ditting 1403 Industrial Grinder – a high-performance solution designed for efficiency, precision, and longevity in professional coffee grinding.
