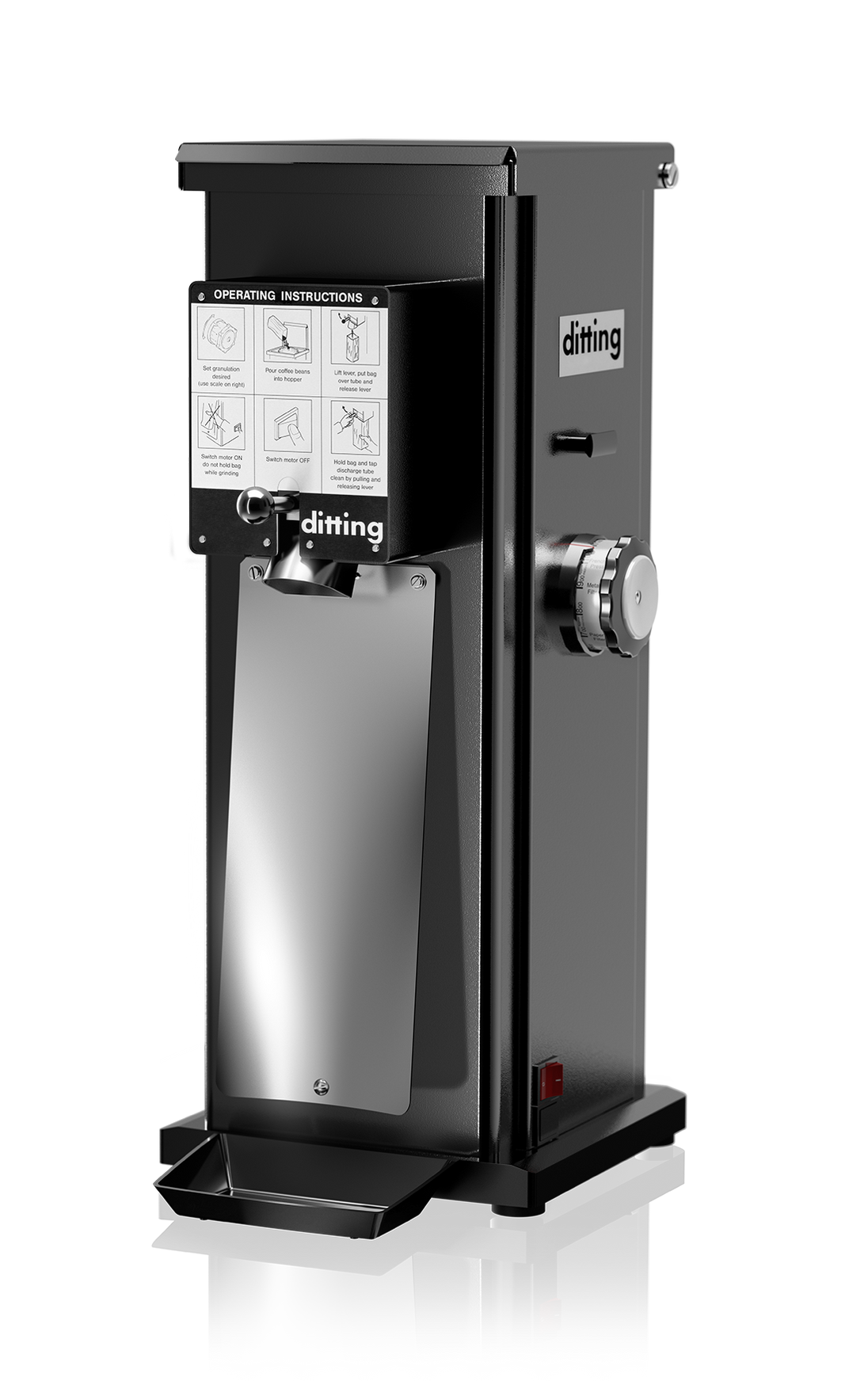

The Ditting 1203 Shop Grinder is the ultimate solution for busy coffee shops, supermarkets, and small roasteries seeking fast, uniform, and reliable grinding performance. Designed with durability and ease of use in mind, this grinder ensures consistent coffee quality while maintaining efficiency in high-demand environments.
Key Features
-
High Grinding Capacity: Specially developed burrs enable fast and efficient grinding across all grind settings.
-
Wear-Resistant Steel Burrs: Designed for long-lasting performance with minimal wear over time.
-
Aroma-Saving Grinding: Consistent grind quality preserves the full aroma and flavor of coffee beans.
-
Stepless Grind Adjustment: Offers complete control over grind size for various brewing methods.
-
Minimal Retention: Manual knocker reduces coffee residue left inside the grinder for precise dosing.
-
Bag Shaking Unit: Ensures optimal and even filling of coffee bags, improving workflow.
-
Easy Maintenance & Cleaning: Simple design allows for quick cleaning and upkeep to ensure consistent performance.
-
Powerful Single-Phase Motor: Delivers robust performance for high-volume coffee grinding.
-
Available in Multiple Colors: Choose from Jet Black, Brown Beige, Ruby Red, or Signal White to match your shop’s aesthetic.
Technical Specifications
| Specification |
Details |
| Voltage // Frequencies // Phases |
200-240 V // 50/60 Hz // 1~
100-120 V // 50/60 Hz // 1~ |
| Revolutions Per Minute |
1400 rpm (50 Hz) |
| Burr Diameter |
120 mm |
| Burr Material |
Special Steel |
| Burr Grind Life (Median Setting) |
Approx. 10-15 tons |
| Grinding Capacity* |
23 g/s |
| Bean Hopper Capacity |
Approx. 1100 g |
| Nominal Power |
1100-1600 W |
| Dimensions (W x H x D) |
260 x 640 x 340 mm |
| Packaging Dimensions (W x H x D) |
330 x 730 x 400 mm |
| Net Weight |
38 kg |
| Shipping Weight |
40 kg |
| Standard Colors |
Jet Black, Brown Beige, Ruby Red, Signal White |
| Available Versions |
KFA: Automatic bag clamp (no bag shaking unit)
KR: Manual bag clamp (with bag shaking unit) |
| Listings & Standards |
CE-konform, CB, UL, NSF, IEC/EN 60335-1, ANSI/UL 763, CSA-C22.2 No. 195 |
Optional Accessories
- Extra-wide range of grind size adjustment
- Ground coffee cup
- Custom RAL-color options
- KFA: Hopper slider option
*Grinding speed depends on the grinding goods and the chosen degree of fineness. All measured values under laboratory conditions. Other electric specifications available upon request. Subject to change without prior notice.
Upgrade your coffee grinding experience with the Ditting 1203 Shop Grinder – a robust, high-performance solution built for precision and efficiency in commercial coffee settings.
