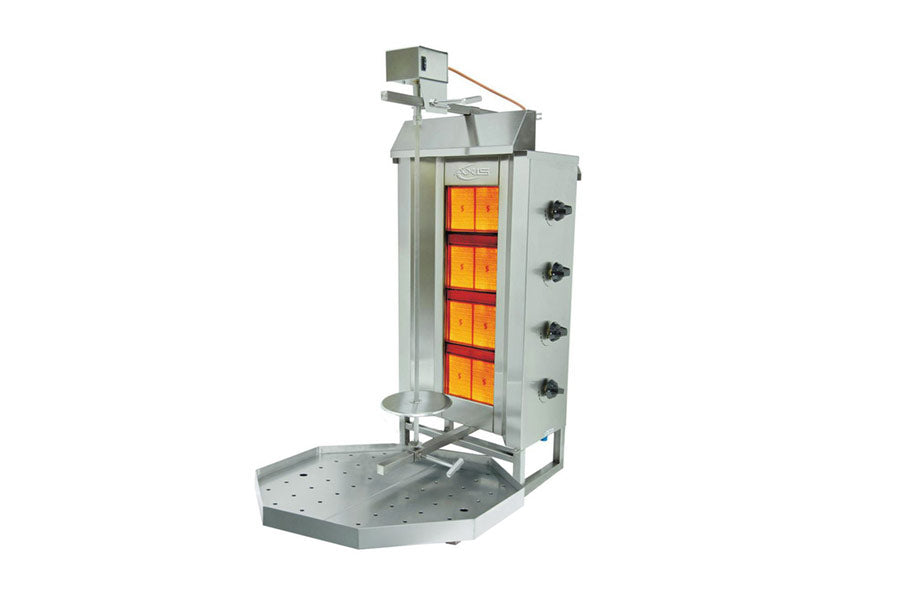

Elevate Your Kitchen with the Axis AX-VB4 Vertical Broiler
Crafted to meet the high demands of commercial kitchens, the Axis AX-VB4 Vertical Broiler is the ultimate choice for restaurants serving shawarma, gyro, tacos al pastor, or rotisserie-style meats. Built with superior-grade AISI 304 stainless steel, this 4-burner powerhouse delivers unmatched durability, hygiene, and cooking precision.
With individually controlled infrared burners, the AX-VB4 allows chefs to tailor heat levels and cook meats evenly from all angles. The top-mounted motor rotates in both directions to ensure balanced broiling while staying protected from dripping fat. A unique E-Z slide dual-rail system gives you full control over the distance and angle between the meat and the burners—maximizing efficiency and flavor.
Ready to use with natural gas and comes with a convenient LP conversion kit, this ETL- and NSF-approved broiler is a must-have for any foodservice establishment that values performance, safety, and consistency.
Key Features & Benefits:
- Commercial-grade AISI 304 stainless steel construction for superior hygiene and strength
- 4 individually controlled infrared burners for precise cooking control
- Top-mounted electric motor (120V, NEMA 5-15P) rotates clockwise and counterclockwise
- E-Z Slide dual-rail system allows adjustable broiling angle and distance
- Flame failure safety system cuts gas flow if burner extinguishes
- Includes removable drip tray for easy cleanup
- Ready for natural gas with LP conversion kit included
- NSF and ETL certified for food safety and compliance
- 1-year warranty on parts and labor
Product Specifications:
| Model | Spit Height | Power (BTU) | Meat Capacity | Shipping Weight | Dimensions (W x D x H) |
|---|---|---|---|---|---|
| AX-VB3 | 24" | 34,140 | 88 lb | 62 lb | 18” x 22” x 39” |
| AX-VB4 | 30" | 44,382 | 176 lb | 75 lb | 18” x 22” x 46” |
| With Pan | — | — | — | — | 24” x 31” (with octagonal pan) |
- Motor Power: 120V, includes cord and NEMA 5-15P plug
- Burner Type: Infrared (individually controlled)
- Gas Type: Ships ready for natural gas, LP kit included
- Certifications: NSF, ETL
- Warranty: 1 year parts and labor
Optional Accessories (Sold Separately)
| Accessory | Compatible Models | Code |
|---|---|---|
| Meat Shovel | VB3 / VB4 | 81-V380 |
| 736mm Skewer | VB3 | 81-V372 |
| 900mm Skewer | VB4 | 81-V373 |
| Pin for Skewer | VB3 / VB4 | 81-V374 |
| 190mm Disc | VB3 / VB4 | 81-V371 |
| 250mm Disc | VB3 / VB4 | 81-V377 |
| Meat Prep Spit Bed | VB3 / VB4 | 81-V370 |
Downloads:
