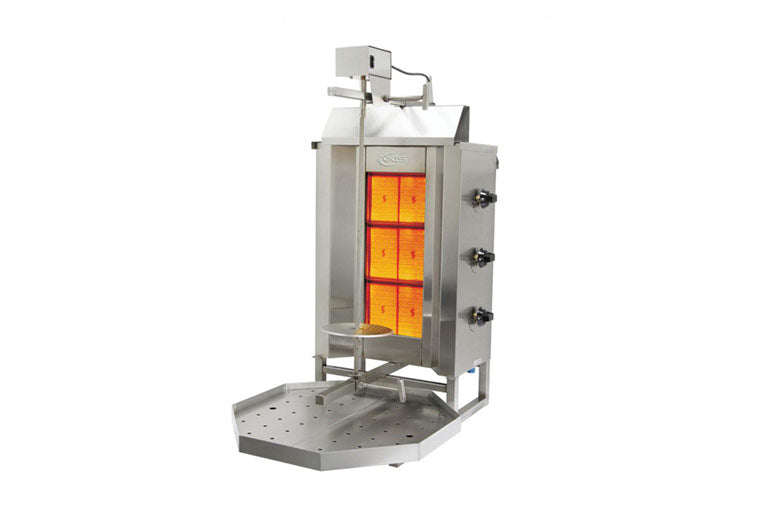

Axis AX-VB3 Vertical Broiler – Commercial Grade, High-Capacity Performance
Engineered for performance, durability, and hygiene, the Axis AX-VB3 Vertical Broiler is the go-to solution for restaurants, food trucks, and commercial kitchens serving shawarma, gyros, doner kebabs, and more. Built with heavy-duty AISI 304 stainless steel and designed for precision broiling, this unit delivers consistent results with a high meat output of up to 88 lbs.
The AX-VB3 features independent infrared burners, a dual-direction motor, and a slide-rail system that lets you adjust meat positioning for ideal cooking distance and angle. A removable drip tray, individual burner controls, and safety shutoff features ensure a clean and safe cooking experience.
Whether you’re broiling lamb, chicken, or beef, the AX-VB3 is your powerhouse solution for high-volume meat service.
Key Features & Benefits:
- Heavy-duty AISI 304 stainless steel for maximum durability & hygiene
- 3 individually controlled infrared burners for efficient, even cooking
- Electric motor (top-mounted) rotates clockwise & counter-clockwise
- Slide-rail system for precise meat placement and angle control
- Built-in safety with thermo-elements to stop gas if flame extinguishes
- Comes ready for natural gas, includes LP conversion kit
- ETL & NSF certified for commercial foodservice compliance
- Ships with NEMA 5-15P plug for easy setup (120V)
- Removable drip tray for easier cleanup
- Backed by 1-year parts & labor warranty
Product Specifications:
| Model | Spit Height | Power (BTU) | Meat Capacity | Shipping Weight | Dimensions (W x D x H) |
|---|---|---|---|---|---|
| AX-VB3 | 24" | 34,140 | 88 lb | 62 lb | 18” x 22” x 39” |
| AX-VB4 | 30" | 44,382 | 176 lb | 75 lb | 18” x 22” x 46” |
| With Pan | — | — | — | — | 24” x 31” (with octagonal pan) |
Optional Accessories (Sold Separately)
| Accessory | Compatible Models | Code |
|---|---|---|
| Meat Shovel | VB3 / VB4 | 81-V380 |
| 736mm Skewer | VB3 | 81-V372 |
| 900mm Skewer | VB4 | 81-V373 |
| Pin for Skewer | VB3 / VB4 | 81-V374 |
| 190mm Disc | VB3 / VB4 | 81-V371 |
| 250mm Disc | VB3 / VB4 | 81-V377 |
| Meat Prep Spit Bed | VB3 / VB4 | 81-V370 |
