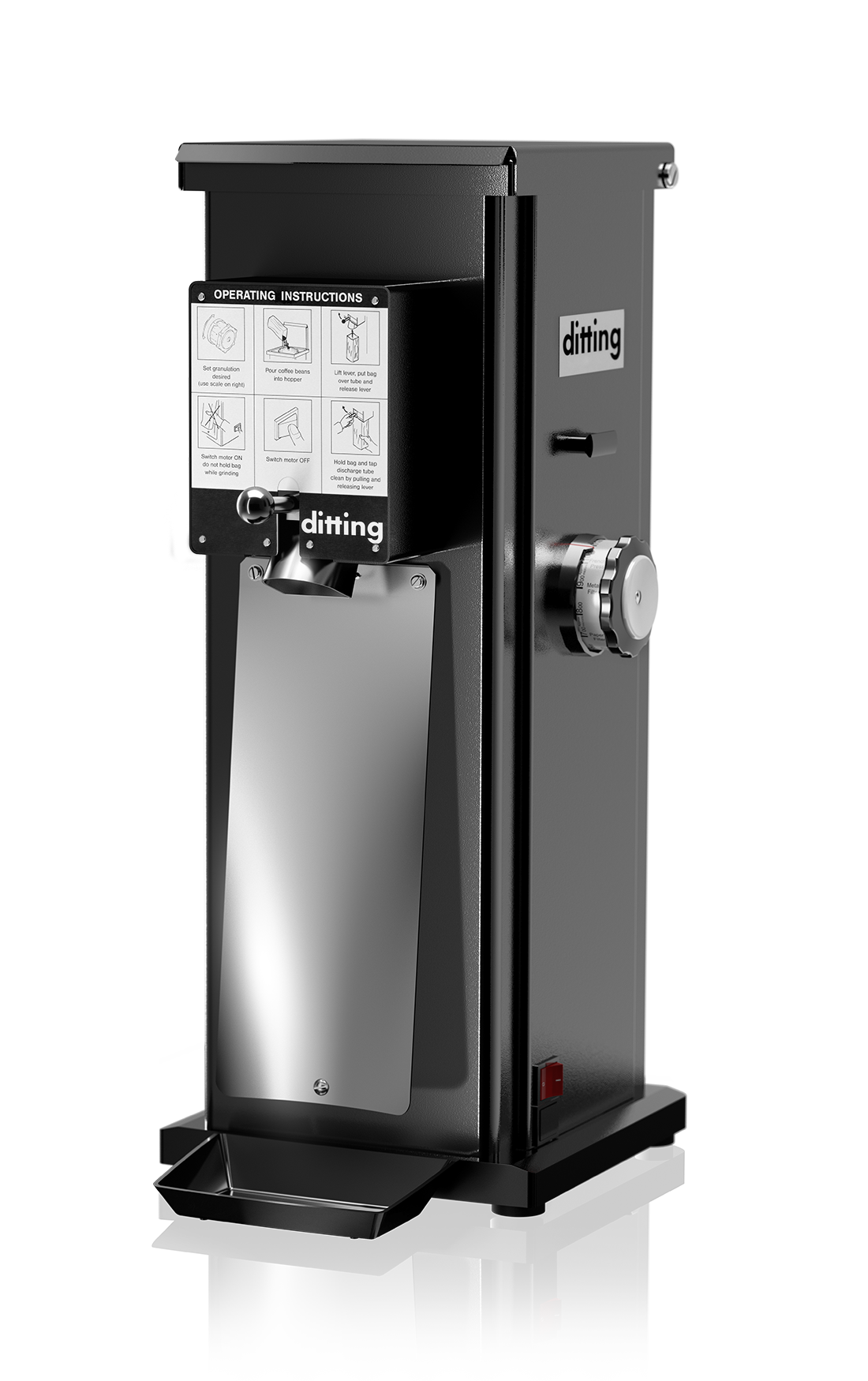

The Ditting 1403 Shop Grinder is built for coffee professionals requiring immense grinding speed, powerful performance, and a high daily capacity. Engineered for busy coffee shops and roasteries, the 1403 delivers precision and efficiency, ensuring consistent grind quality across all settings.
Key Features
- 140 mm Special Steel Burrs: Designed for high grinding capacity across all grind sizes.
- Wear-Resistant Steel Burrs: Long-lasting performance for continuous heavy-duty grinding.
- Aroma-Saving Grinding: Ensures consistent particle size while preserving coffee flavor and aroma.
- Stepless Grind Adjustment: Enables precise control over grind size, from espresso to coarse brewing methods.
- Minimal Retention: Manual knocker reduces coffee residues inside the slide for maximum efficiency.
- Bag Shaking Device: Optimizes the filling of coffee bags, ensuring uniform distribution.
- Easy Maintenance & Cleaning: Designed for hassle-free operation, reducing downtime in busy settings.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage // Frequencies // Phases | 380-415 V // 50/60 Hz // 3~ 200-240 V // 50/60 Hz // 3~ |
| Revolutions Per Minute | 1400 rpm (50 Hz) |
| Burr Diameter | 140 mm |
| Burr Material | Special Steel |
| Burr Grind Life (Median Setting) | Approx. 10-15 tons |
| Average Grinding Capacity* | 2200 g/min |
| Bean Hopper Capacity | Approx. 1100 g |
| Nominal Power | 1700-2000 W |
| Dimensions (W x H x D) | 260 x 640 x 340 mm |
| Dimensions of Packing (W x H x D) | 330 x 730 x 400 mm |
| Net Weight | 38 kg |
| Shipping Weight | 40 kg |
| Standard Colors | Jet Black, Brown Beige, Ruby Red, Signal White |
| Available Versions | KFA: Automatic Bag Clamp (No Bag Shaking Unit) KR: Manual Bag Clamp (With Bag Shaking Unit) |
| Listings | CE-conform, CB, UL, NSF (Additional certifications available on request) |
| Standards | IEC/EN 60335-1; IEC/EN 60335-2-64; ANSI/UL 763; ANSI/NSF 8; CSA-C22.2 No. 195 (Additional on request) |
Equipment Features
- Powerful Three-Phase Motor for continuous high-performance grinding.
- Grind Size Adjustment with Extraction Information for precise customization.
- KR Model Includes: Bag Clamping Lever, Knocker Unit, and Shaker Plate.
Optional Accessories
- 140 mm Special Steel Burrs for Turkish Fine Cut.
- 140 mm Special Steel Burrs for Increased Grind Speed & Coarser Grinding.
- Extra-Wide Range of Grind Size Adjustment.
- Ground Coffee Cup.
- Customized RAL-Color Options (Available Upon Request).
*Grinding speed depends on the grinding goods and the chosen degree of fineness. All measured values are under laboratory conditions. Other electric specifications are available upon request. Subject to change without prior notice.
Experience unmatched grinding power and efficiency with the Ditting 1403 Shop Grinder – the ultimate solution for high-volume coffee professionals.
Downloads:
-
Ditting 1403 shop grinder - Product sheet
-
Ditting 1403 shop grinder - Original instruction manual
-
Ditting 1403 shop grinder - Spare parts list
- Ditting Product Range Brochure
Service Videos:
Ditting
Ditting 1403 Shop Grinder – High-Performance Grinding for Busy Coffee Shops & Roasteries
- Regular price
- $5,499.00
- Regular price
- $5,499.00
✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🏭 Manufacturer Warranty Included
❓ Questions? Call Our Experts: +1 (800) 960-2171
