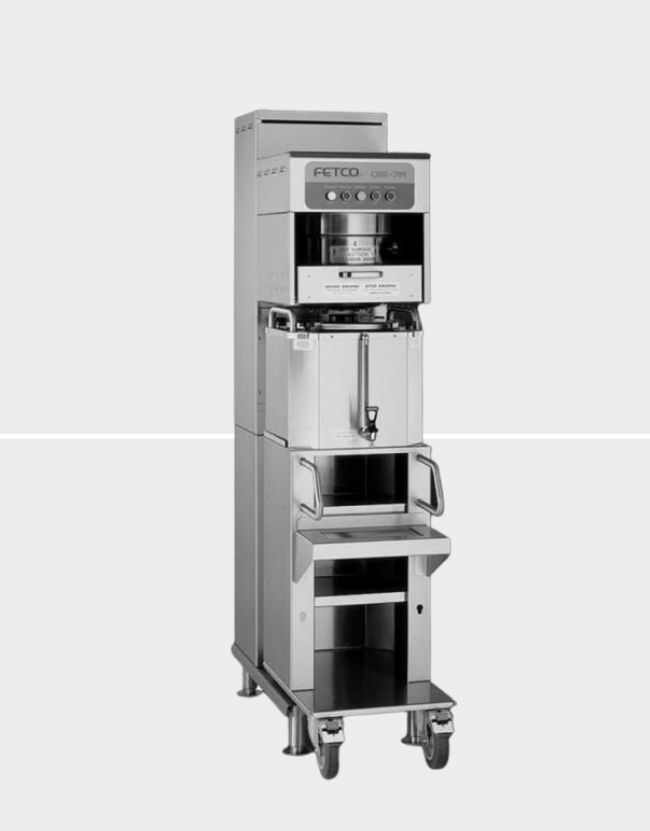

FETCO CBS-71AC High Volume Coffee Brewer – 6 Gallon Capacity
(Rolling Cart)
Commercial-Grade Brewing at Unmatched Scale
The FETCO CBS-71AC High Volume Coffee Brewer is the ultimate solution for venues requiring fast, consistent, and large-scale coffee production. Capable of brewing up to 6 gallons at a time and up to 480 8 oz cups per hour, this brewer is trusted in high-demand settings like hotels, stadiums, arenas, and convention centers.
With FETCO’s signature engineering, the CBS-71AC offers programmable recipes, controlled extraction, and steam-minimizing design—allowing your staff to “set it and forget it” while consistently delivering the perfect brew.
Designed for mobile cart dispensing and capable of pairing with multiple thermal dispensers (sold separately), this brewer is your all-in-one coffee station for high-traffic service environments.
Key Features:
- Brews up to 6 gallons of coffee at once
- Up to 480 cups/hour (8 oz) capacity
- Steam-contained brew compartment minimizes ventilation needs
- Programmable recipes ensure consistency
- Large spray pan ensures even coffee ground saturation
- Adjustable brew time & bypass percentage
- Designed for mobile cart deployment
- Compatible with multiple thermal dispensers (sold separately)
- Heavy-duty stainless steel construction
- Made in the USA (Lake Zurich, IL)
What’s Included:
- 1 × FETCO CBS-71AC High Volume Coffee Brewer
- Electrical terminal block
- User manual and installation guide
- Manufacturer’s warranty (per FETCO terms)
Product Specifications:
| Category | Specification |
|---|---|
| Brew Capacity | 6 gallons (22.8 L) |
| Cups per Hour | 480 (8 oz), 320 (12 oz), 240 (16 oz), 192 (20 oz) |
| Height | 78.5 in (199.5 cm) |
| Width | 18 in (45.7 cm) |
| Depth | 32.75 in (83.2 cm) |
| Empty Weight | 261 lbs (118.4 kg) |
| Filled Weight | 412 lbs (186.9 kg) |
| Shipping Weight | 313 lbs (142 kg) |
| Shipping Dimensions | 55" x 48" x 42" (137.2 x 121.9 x 106.7 cm) |
| Tank Capacity | 6 gallons (22.8 L) |
| Water Inlet | 3/8" male flare fitting |
| Minimum Water Flow | 2 GPM (7.61 LPM) |
| Water Pressure Range | 20–75 PSIG (138–517 kPa) |
| Electrical Options | 3 x 5.0 kW – 120/208-240V, 3Ph, 4+G |
| 3 x 10.0 kW – 120/208-240V, 3Ph, 4+G | |
| 3 x 10.0 kW – 440-480V, 3Ph, 3+G | |
| Max Amp Draw | 31.9–72.9 Amps |
| Gallons per Hour Output | 18–36 gallons/hour (68.1–136.3 L/hr) |
| Electrical Connection | Terminal Block |
Available Electrical Configurations
| Configuration Code | Heater Setup | Voltage | Phase | Wires | Power (kW) | Max Amp Draw | Brew Rate (Gal/L per Hour) |
|---|---|---|---|---|---|---|---|
| C71018 | 3 × 5.0 kW Heaters | 120/208-240 V | 3 | 4 + G | 11.5–15.1 kW | 31.9–36.8 A | 18.0–24.0 Gal (68.1–90.8 L) |
| C71028 | 3 × 10.0 kW Heaters | 120/208-240 V | 3 | 4 + G | 22.8–30.1 kW | 63.2–72.9 A | 36.0 Gal (136.3 L) |
| C71038 | 3 × 10.0 kW Heaters | 440–480 V | 3 | 3 + G² | 20.8–30.0 kW | 30.1–36.1 A | 36.0 Gal (136.3 L) |
- Electrical Connection Type: Terminal Block
- Ground (G) Required
- ²Configuration C71038 uses a 3-wire + ground connection (3+G)
About – FETCO
FETCO is committed to brewing innovation. For over 30 years, the brand has been a leading manufacturer of premium coffee and tea brewing equipment, hot water dispensers, and grinders—trusted by foodservice professionals worldwide.
Founded in 1987 by Zbigniew Lassota and Christopher Nowak, FETCO was established to meet the industry’s demand for high-quality, dependable brewing solutions. All products are manufactured at the company’s headquarters in Lake Zurich, Illinois, continuing a legacy of engineering excellence.
What sets FETCO apart is a strong focus on innovation and customer experience. Each product is thoughtfully designed with performance, reliability, and specific business needs in mind. From independent cafés to global chains, FETCO equipment supports coffee and tea professionals in delivering exceptional service and consistency.
Driven by progress and powered by trust, FETCO remains a dedicated partner in every brewing journey.
