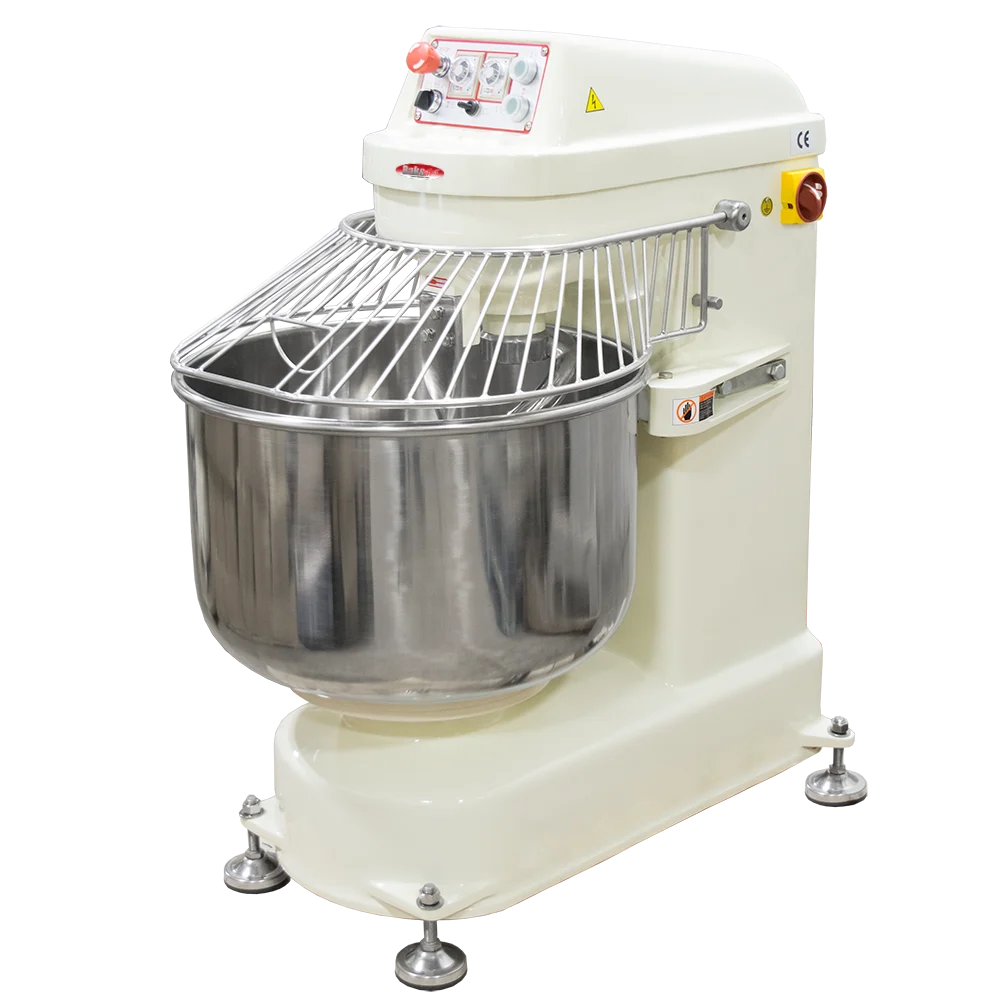

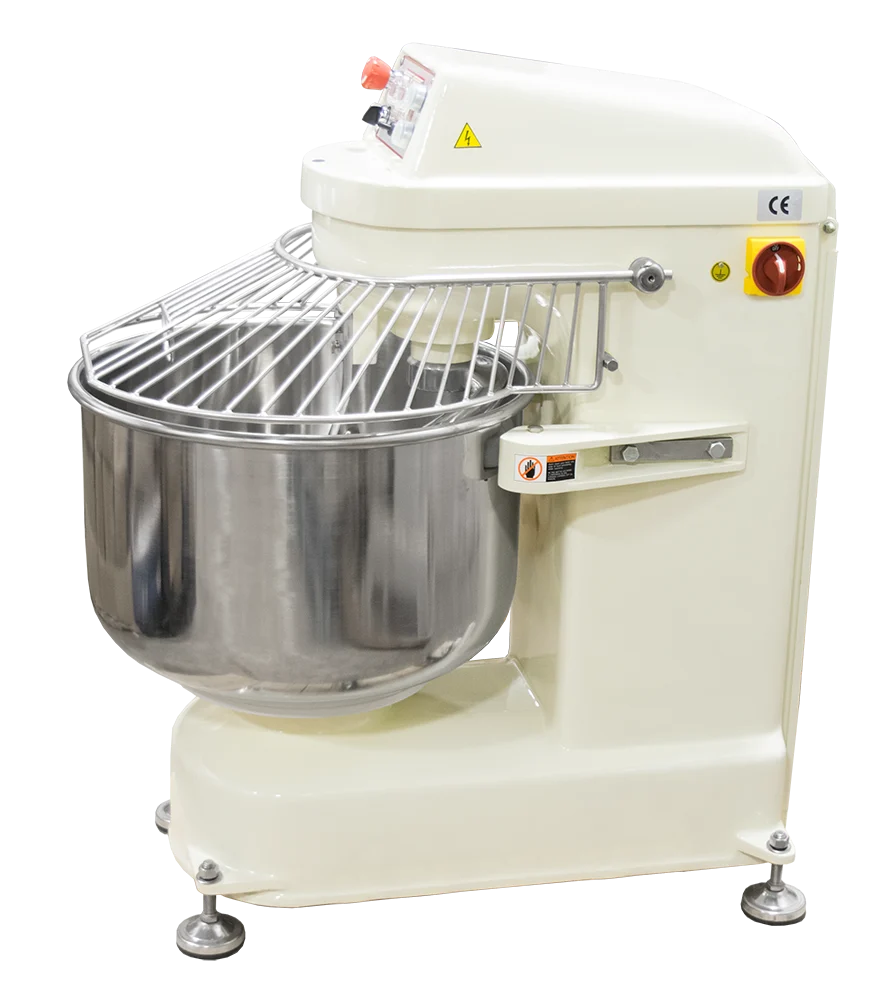

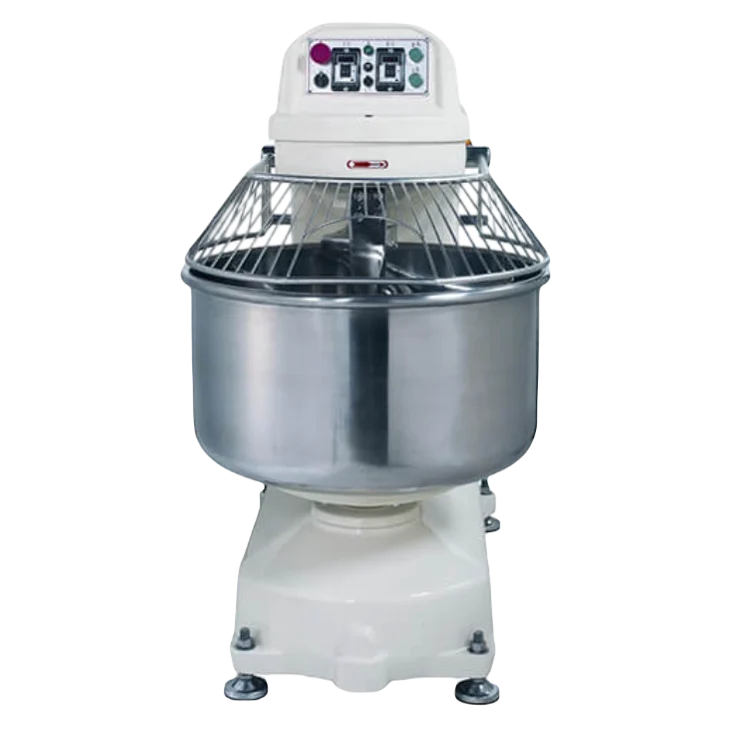

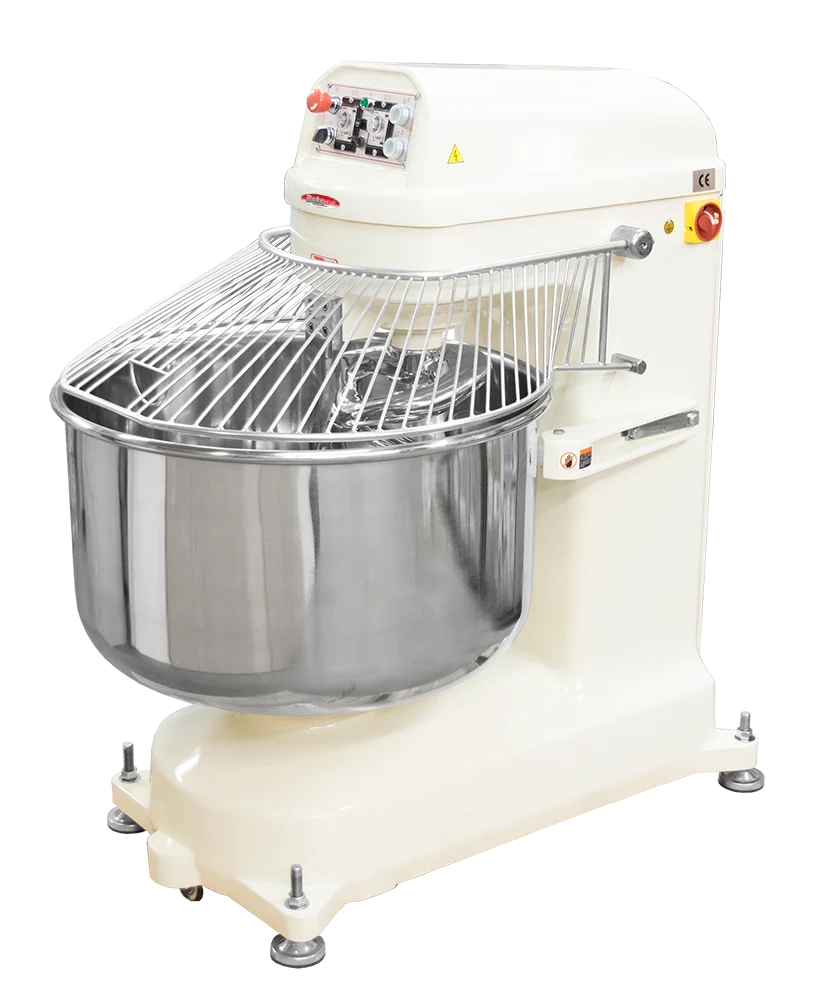

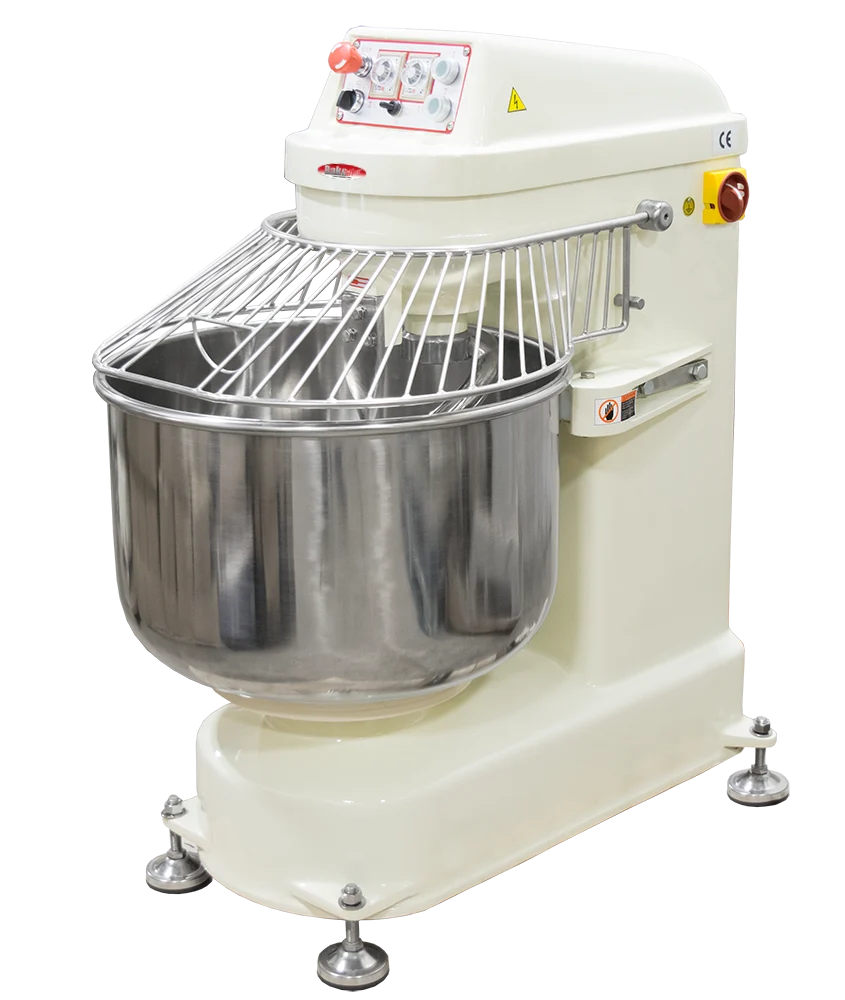

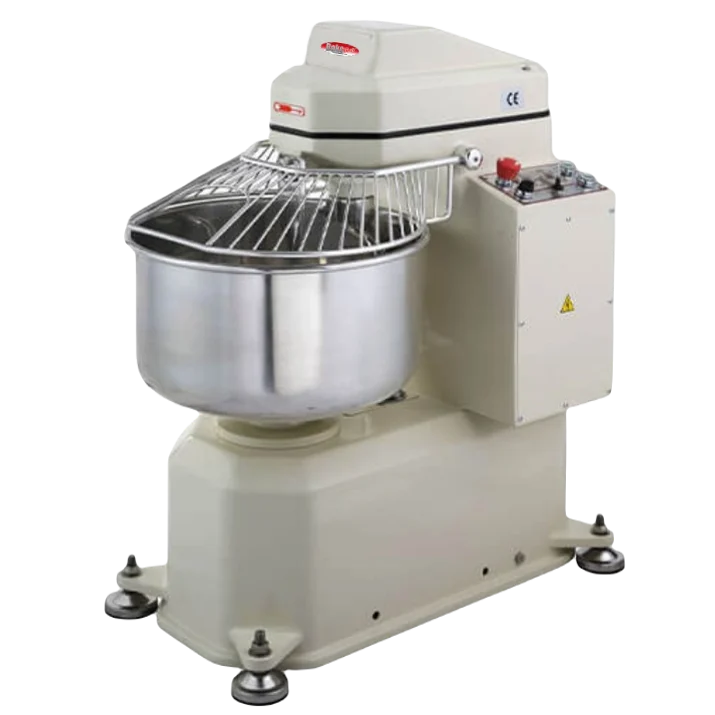

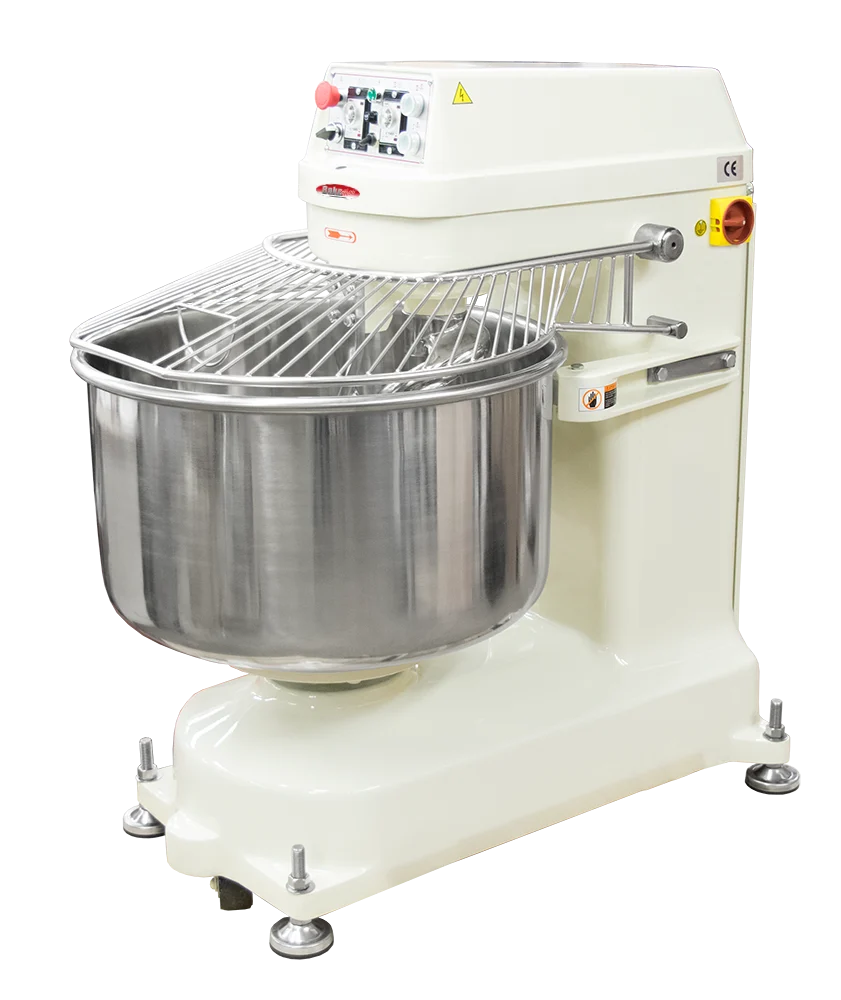

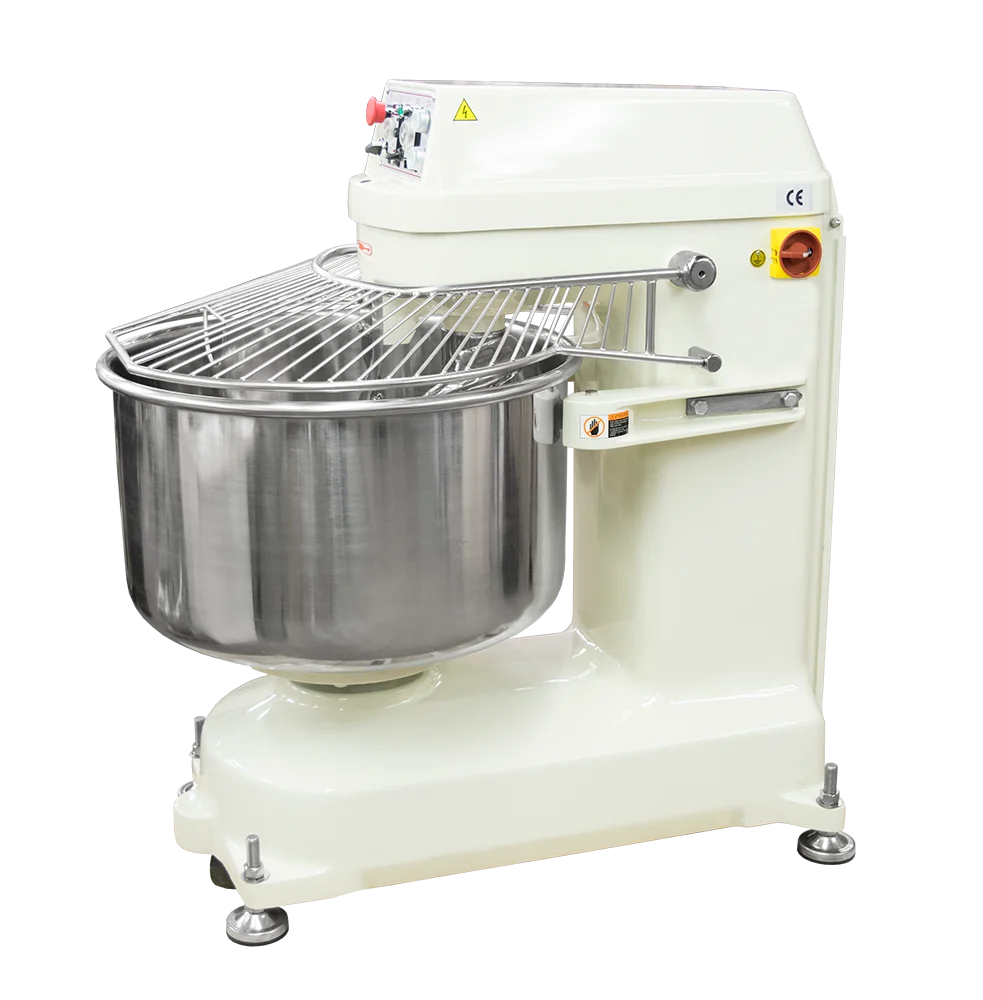

BakeMax BMSM Series 20-120 KG Spiral Mixer
Perfect Dough, Every Time — From 20kg to 120kg Capacity
Take your bakery, pizzeria, or pastry shop to the next level with the BakeMax BMSM Series Spiral Dough Mixers. Engineered for performance and durability, these mixers are built to tackle the most demanding doughs with precision and efficiency. With 2-speed mixing, dual motors, and reverse bowl rotation, they ensure your dough is perfectly mixed — every time.
Each model features a stainless steel bowl and hook, dual 30-minute timers, and a safety bowl guard that halts operation instantly when opened. Whether you're mixing 20kg or 120kg of dough, these spiral mixers deliver consistent results, cooler dough temps, and higher water absorption for superior texture and volume.
Included Attachments: Stainless Steel Bowl, Spiral Hook
Warranty: 2-Year Limited Parts & Labor
Key Features
- Heavy-duty stainless steel bowl, spiral hook, and safety guard
- Dual-motor design: One motor for the spiral arm, one for the bowl
- Reverse-rotating bowl with synchronized spiral arm for efficient mixing

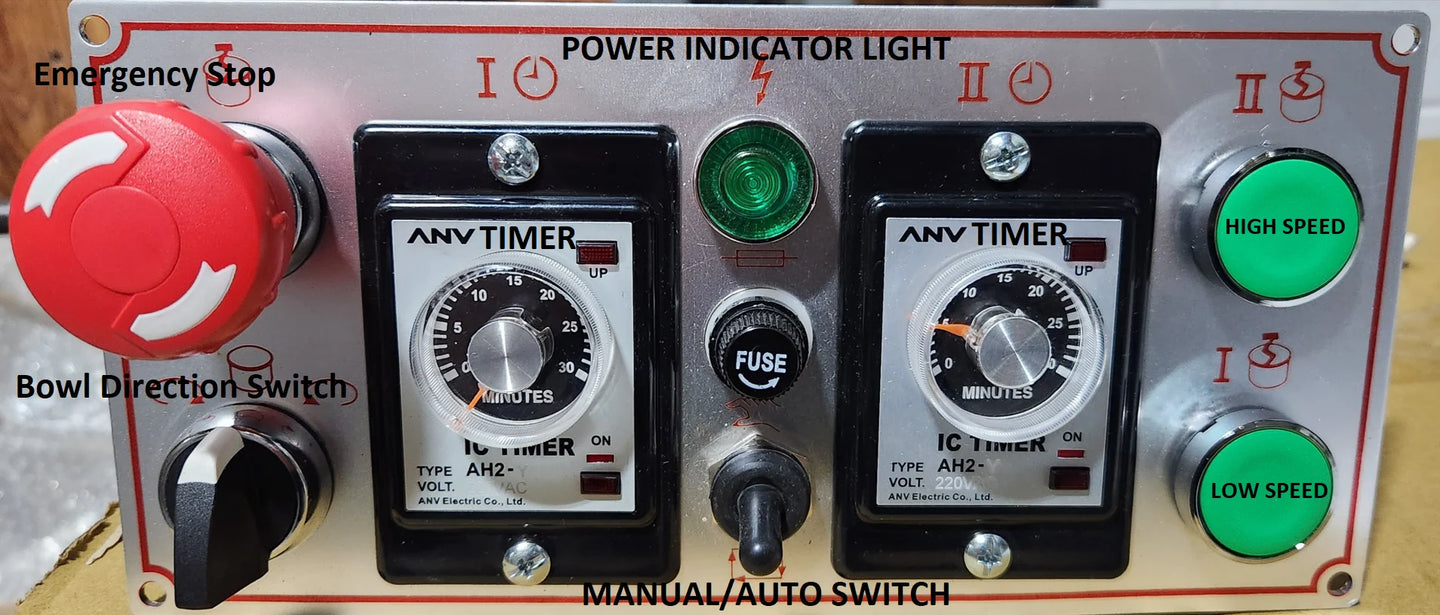

- Two 30-minute timers for automatic or manual operation
- 2-speed high-efficiency mixing (7–10 minutes typical cycle)

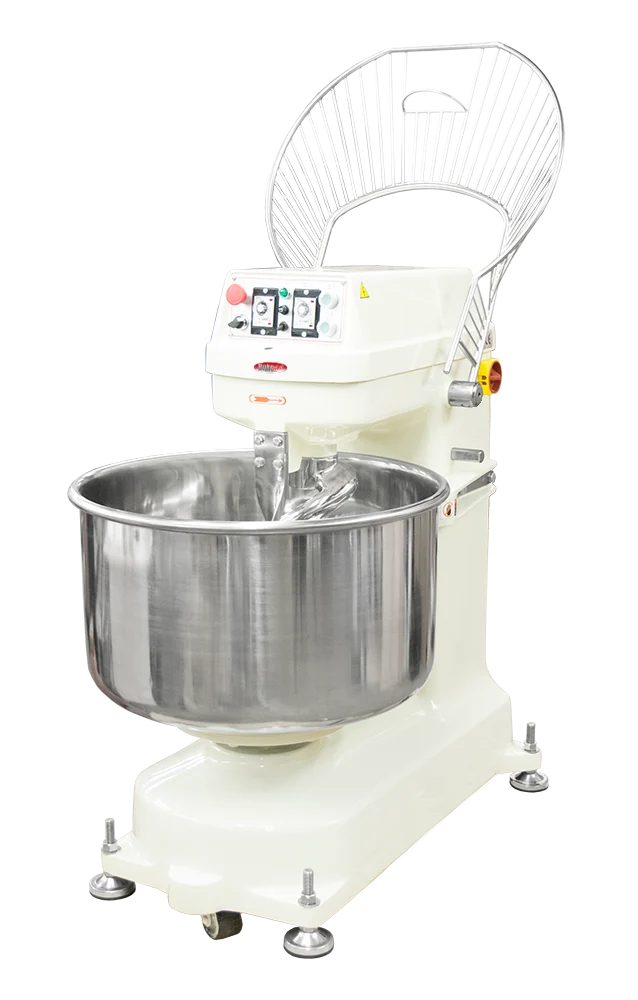

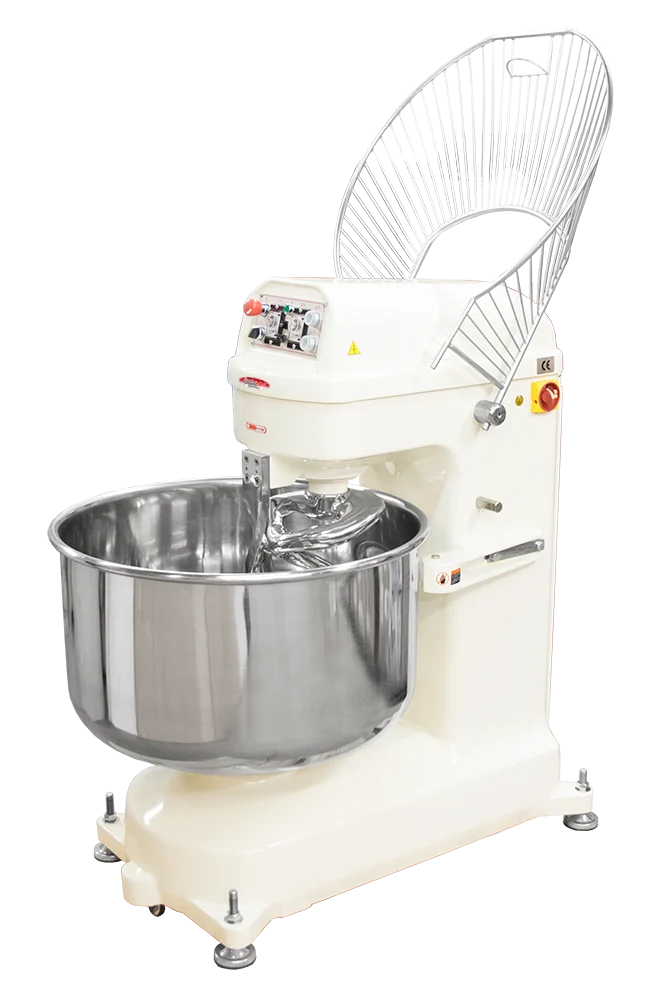

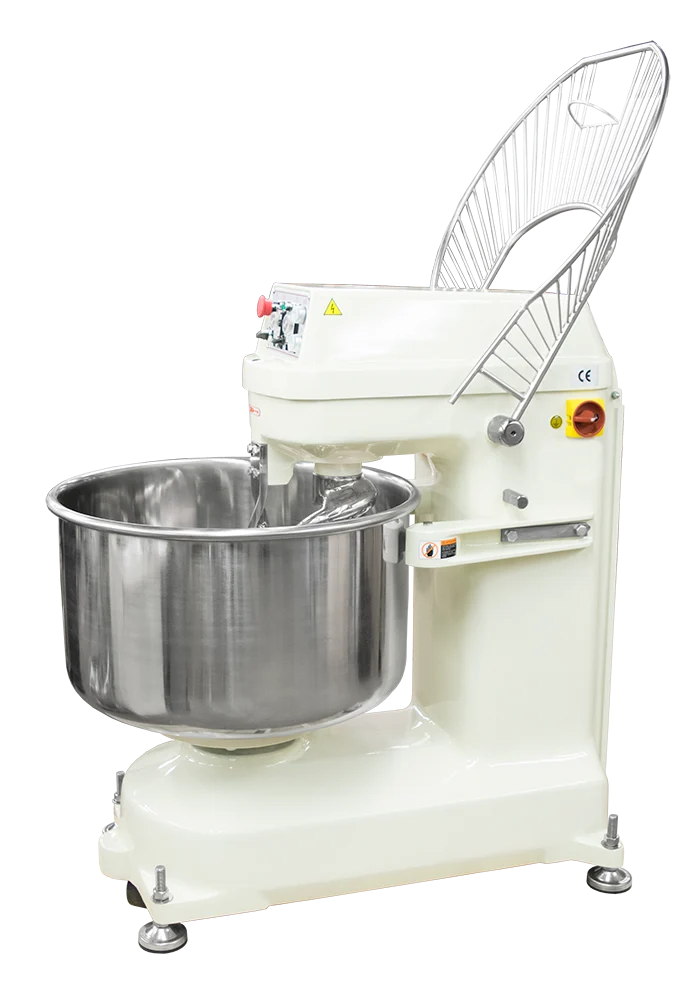

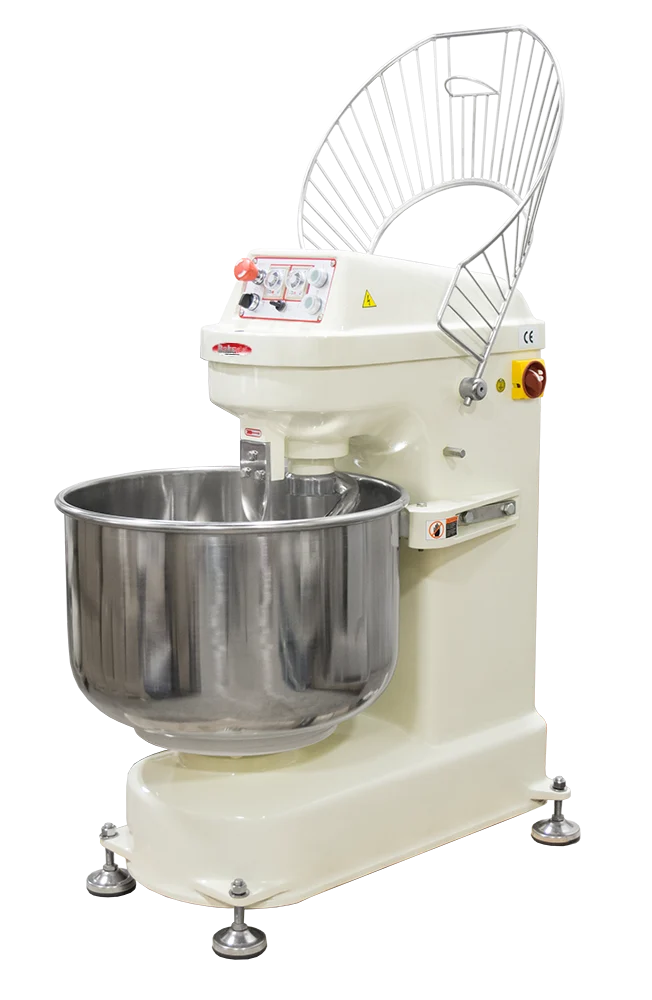

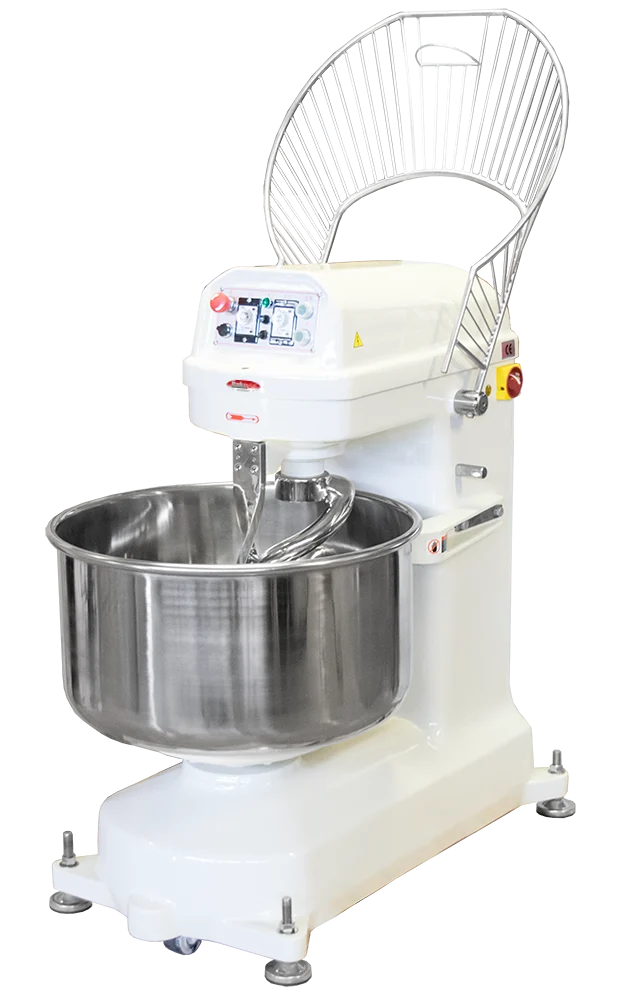

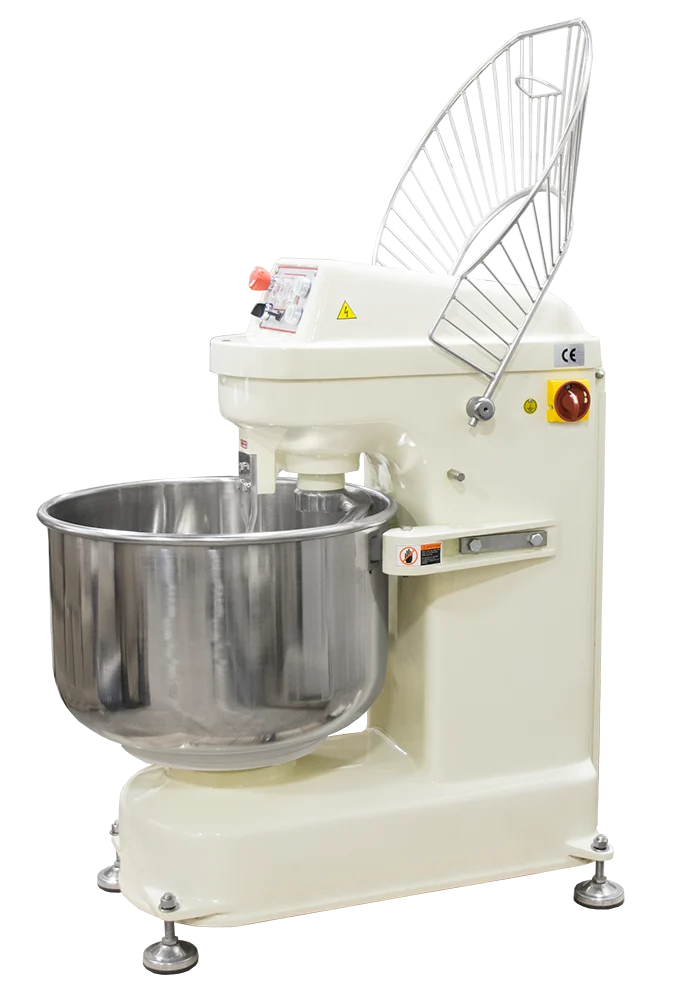

- Automatic shutoff when bowl guard is lifted
- Low-maintenance design with gear-free speed transitions
- Optional single-phase converter (BMSM020, BMSM030, BMSM040)
What's Included:
- Stainless Steel Bowl
- Spiral Dough Hook
- Integrated Safety Bowl Guard
- Dual 30-Minute Timers
- 2-Year Limited Parts & Labor Warranty

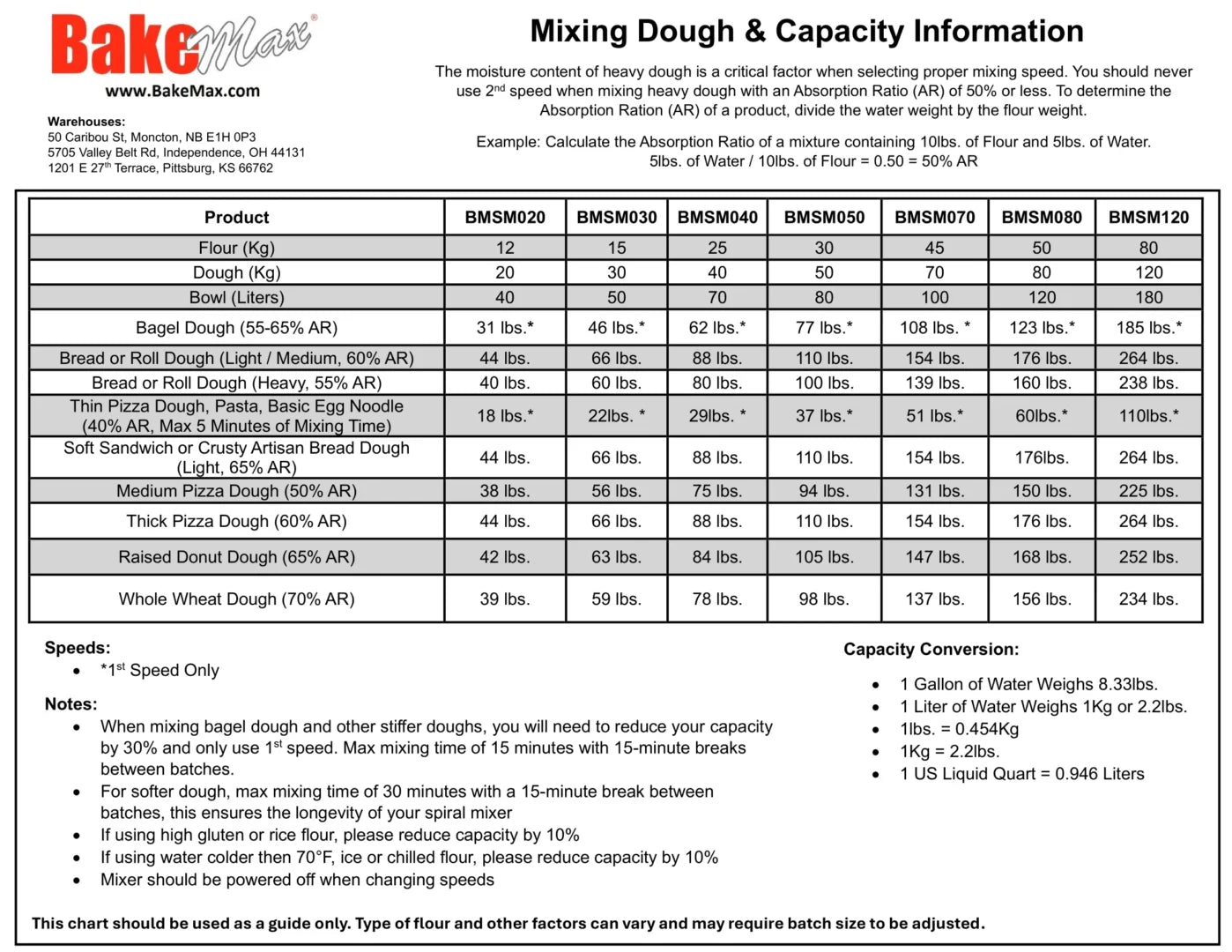

Models & Dough Capacities:
| Model | Dough Capacity | Bowl Size | Flour Capacity | Voltage | Amps | Power (Watts) | Phase |
|---|---|---|---|---|---|---|---|
| BMSM020 | 20 kg (44 lbs) | 36 qt | 11 kg (24 lbs) | 220V | 7.5 | 1,650 W | 3Ph |
| BMSM030 | 30 kg (66 lbs) | 53 qt | 15 kg (33 lbs) | 220V | 10 | 2,200 W | 3Ph |
| BMSM040 | 40 kg (88 lbs) | 73 qt | 25 kg (55 lbs) | 220V | 12 | 2,640 W | 3Ph |
| BMSM050 | 50 kg (110 lbs) | 84 qt | 30 kg (66 lbs) | 220V | 15 | 3,300 W | 3Ph |
| BMSM070 | 70 kg (154 lbs) | 105 qt | 40 kg (88 lbs) | 220V | 17 | 3,740 W | 3Ph |
| BMSM080 | 80 kg (176 lbs) | 127 qt | 50 kg (110 lbs) | 220V | 23 | 5,060 W | 3Ph |
| BMSM120 | 120 kg (264 lbs) | 190 qt | 80 kg (176 lbs) | 220V | 35 | 7,700 W | 3Ph |
⚠️ For bagel dough or stiffer doughs, reduce max capacity by 30%.
Dimensions (Inches):
| Model | Height | Width | Depth | Bowl Diameter |
|---|---|---|---|---|
| BMSM020 | 38" | 20" | 33" | 25" |
| BMSM030 | 39" | 21" | 35" | 25" |
| BMSM040 | 41" | 21" | 35" | 26" |
| BMSM050 | 45" | 22" | 41" | 31" |
| BMSM070 | 45" | 26" | 41" | 32" |
| BMSM080 | 47" | 28" | 45" | 32" |
| BMSM120 | 51" | 32" | 48" | 34" |
Shipping Information:
| Model | Net Weight | Shipping Weight | Crated Dimensions (DxWxH) |
|---|---|---|---|
| BMSM020 | 328 lbs | 370 lbs | 27” x 36” x 46” |
| BMSM030 | 405 lbs | 450 lbs | 28” x 42” x 48” |
| BMSM040 | 452 lbs | 629 lbs | 28” x 42” x 50” |
| BMSM050 | 901 lbs | 1059 lbs | 28” x 48” x 54” |
| BMSM070 | 990 lbs | 1147 lbs | 30” x 49” x 55” |
| BMSM080 | 1146 lbs | 1345 lbs | 34” x 51” x 59” |
| BMSM120 | 2061 lbs | 2290 lbs | 42” x 67” x 68” |
Electrical Specifications:
- Voltage: 220V
- Frequency: 60Hz
- Phase: 3 Phase
- Plug Type: Hard Wired
Certifications:
- QPS Certified
- CE Certified
